How to use socio4health GUI#

For those who prefer a graphical user interface (GUI) over coding, the Socio4Health GUI provides an easy-to-use platform for data harmonization. This tutorial will guide you through the steps of using a the GUI to export, manage, and harmonize demographic and socioeconomic data.

1. Standardize the raw dictionary#

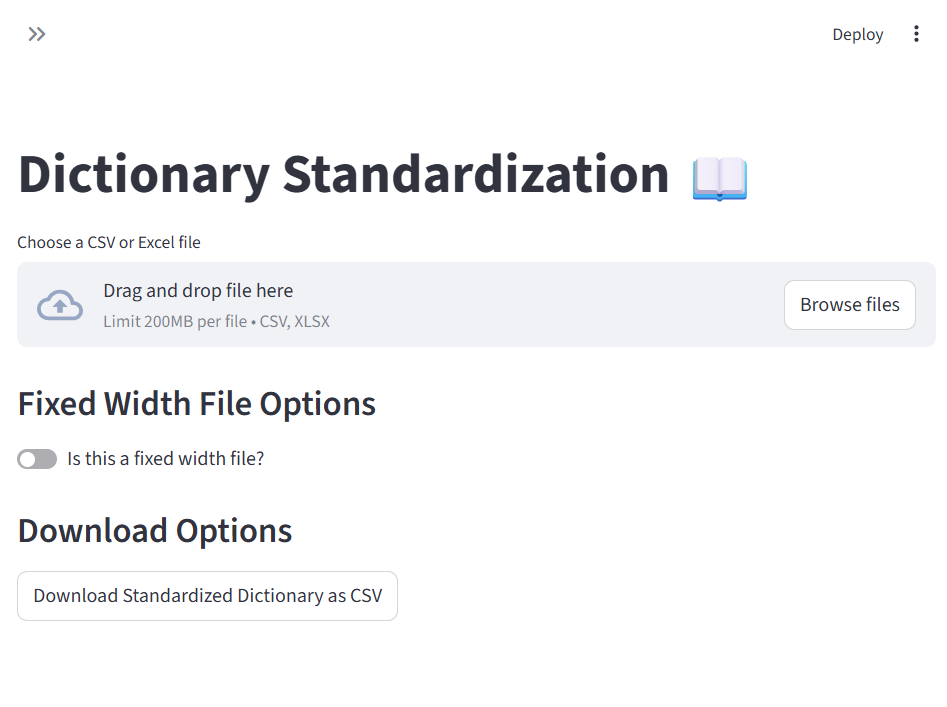

In the side menu, click on the Dictionary Standardization option. This will take you to a new page where you can upload your raw dictionary file.

CSV file structure

Here you can upload your raw dictionary file in CSV or Excel format. The raw dictionary should contain the following columns: question, variable_name, value, description, and possible_answers. Before uploading, ensure that your file is properly formatted and contains all the necessary information. Follow the dictionary creation tutorial to create your raw dictionary.

Note

In case it is a Fixed Width File (FWF), you can process it by clicking on hte Is this a fixed width file? sliding.

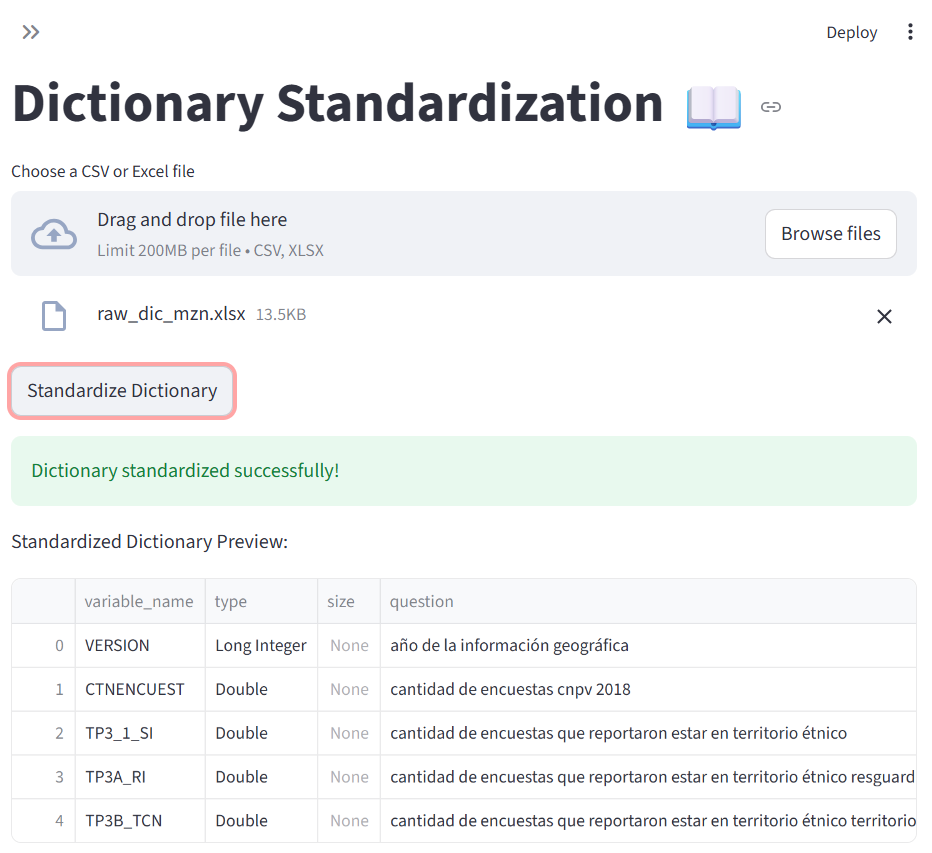

Once the file is uploaded, click on the Standardize Dictionary button. The GUI will process the file, standardize the dictionary according to the required format and load it into the system for further processing.

CSV file structure

If needed, you can download the standardized dictionary by clicking on the Download Standardized Dictionary button. This will allow you to save a copy of the standardized dictionary as a CSV file for your records or for further analysis.

2. Data Extraction#

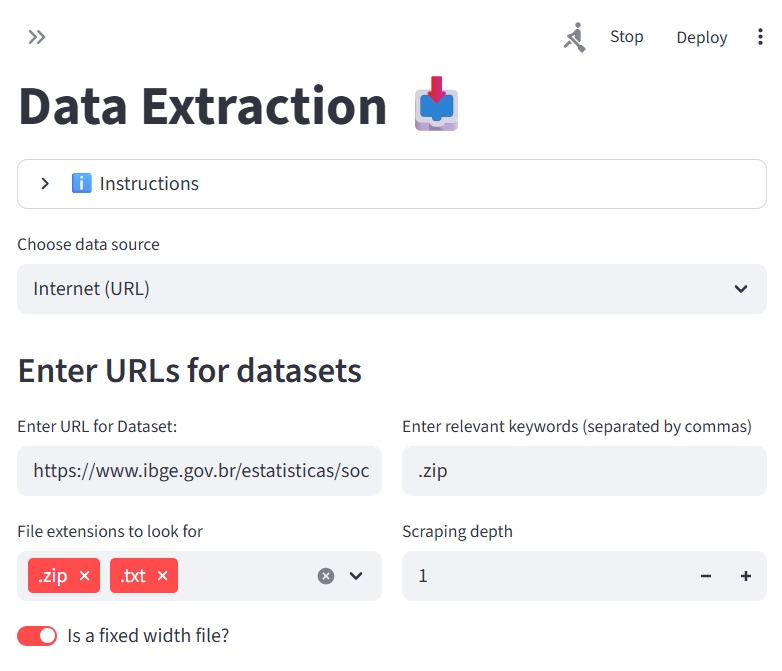

Choose the data source from the dropdown menu. The available options are: Internet (URL), Local file, Example Brazil Census 2010, and Example Colombia Housing Survey 2021.

extract data from URL

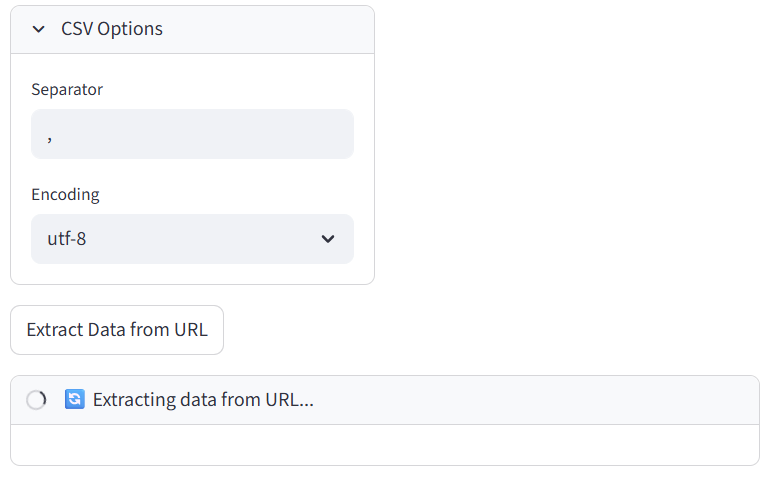

If you select Internet (URL), you will need to provide the URL of the data file you want to upload. Additionally, you can specify any relevant keywords, file extensions to look for, scraping depth and whether the file is a fixed width file (FWF). Also make sure to set CSV parameters such as the separator and the encoding. Once you have filled in all the required information, click on the Extract Data from URL (or File) button to start the data extraction process.

extract data from URL

3. Data Harmonization#

Once you have extracted the data, you can proceed to harmonize it. Click on the Harmonization option in the side menu to access the harmonization page.
