How to create a raw dictionary for data harmonization

For data harmonization, it is essential to have a raw dictionary that defines the structure and content of the data. This dictionary serves as a reference for understanding the data fields, their types, and any transformations that may be necessary. In this section, we will outline the steps to create a raw dictionary for data harmonization.

1. Retrieve dictionary from data sources

Data sources usually provide a dictionary that describes the data fields. These dictionaries can be in various formats, such as JSON, XML, or CSV. The first step is to retrieve the dictionary from the data sources you are working with.

In the following example, we create a raw dictionary from a CSV file containing the data field definitions from Colombia’s 2018 National Population and Housing Census (CNPV), published by the National Administrative Department of Statistics (DANE). The CNPV-2018 CSV file is available here.

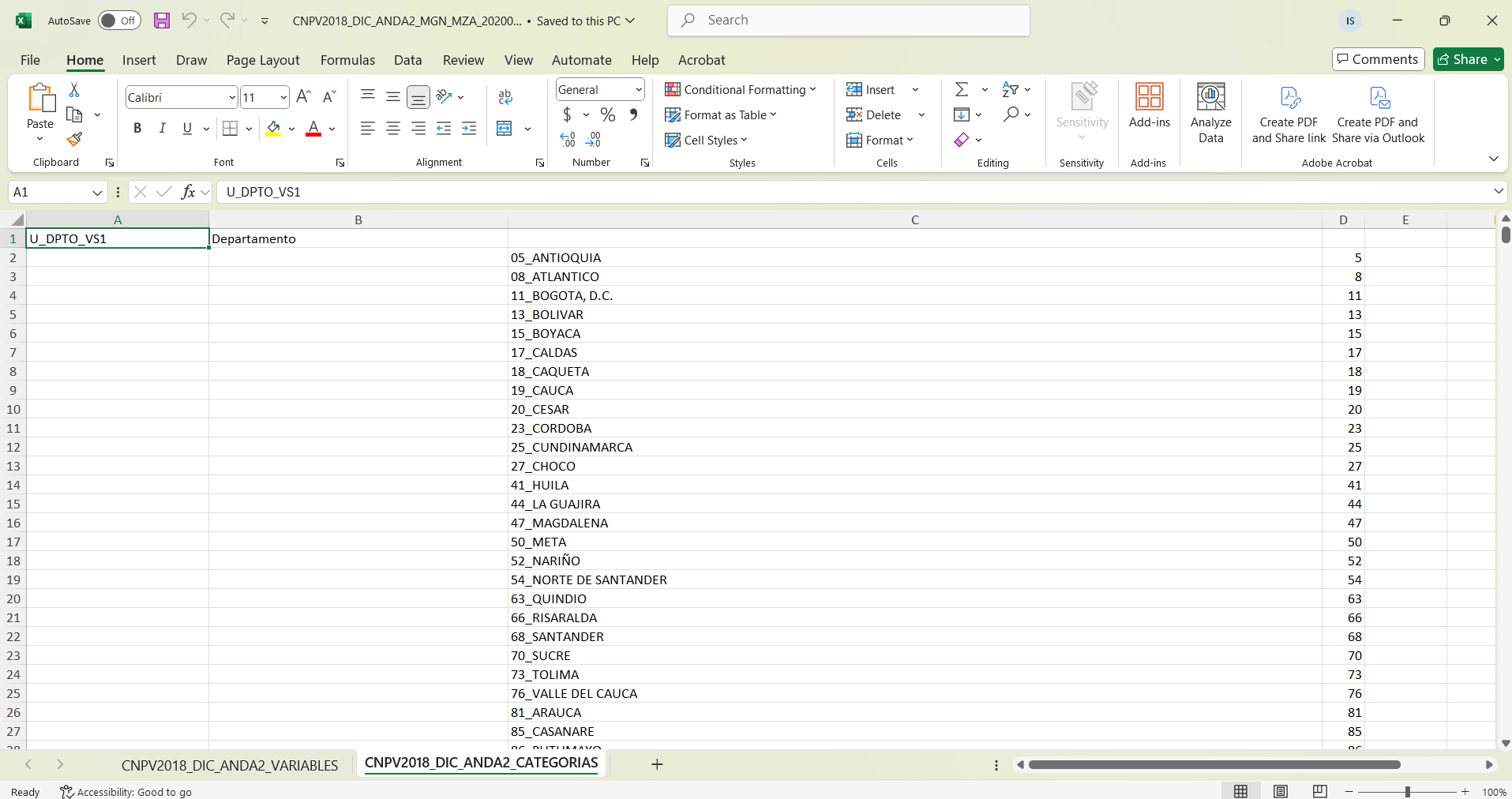

In this case, clicking the link downloads a ZIP file containing the CSV file. Once the CSV file is extracted, we can inspect it to understand its structure and the fields it contains. The CSV file contains two sheets, one with the variables and another with the categories. The first sheet contains the variable definitions, while the second sheet contains the possible answers for each variable. We must ensure that we include both sheets in our raw dictionary.

Note

Each data source and survey may have its own format for the dictionary, so it is important to understand the structure of the dictionary you are working with. We might need to include all the data contained in the file that fills the required columns in the raw dictionary. These columns are: question, variable_name, value, description, and possible_answers.

Important

Be aware that the columns may have different names and may appear in different order in the original dictionary, so you may need to adapt them accordingly.

2. Create the raw dictionary

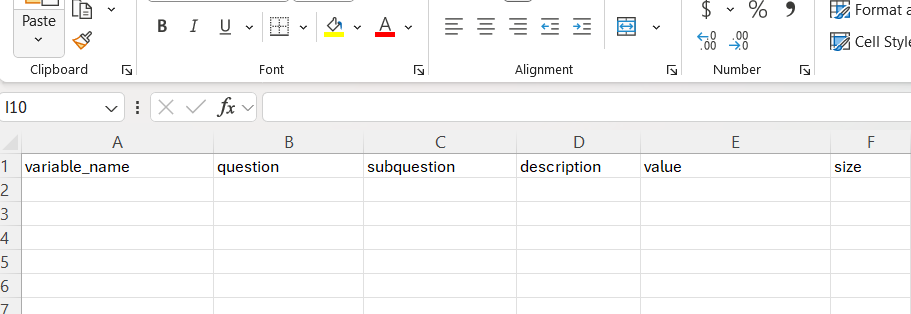

Once you have retrieved the dictionary from the data sources, the next step is, in a empty Excel (xlx) sheet, fill the first row with the following columns: question, variable_name, value, description, and possible_answers in the first row in the same order they appear in the provided data dictionary. Include any additional columns that may be relevant for your specific use case. In this case, the columns are in the following order:

Then, copy the data from the original dictionary to the new raw dictionary, ensuring that the data is placed in the correct columns.

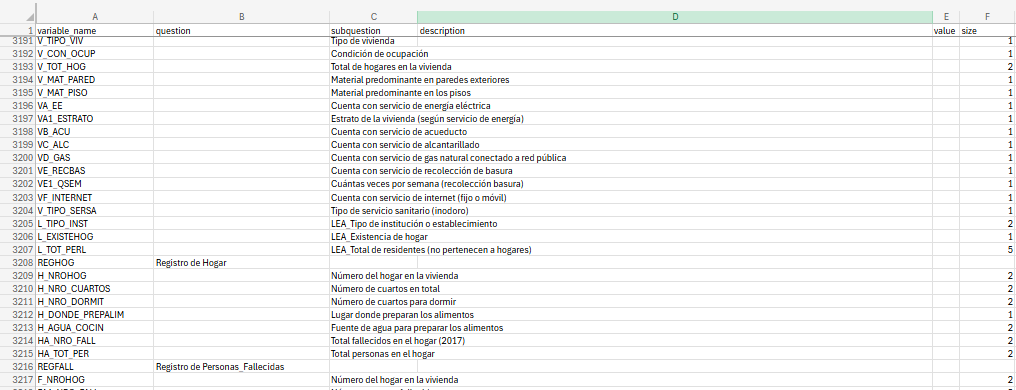

In this example, we copy the data from the two sheets in the CNPV-2018 CSV file to the new raw dictionary, ensuring that the data is placed in the correct columns and keeping the same order.

With the raw dictionary created, we can now proceed to the next step of data harmonization, which involves mapping the raw dictionary to a standardized format. This is covered in the Harmonization tutorial.
